Product Description

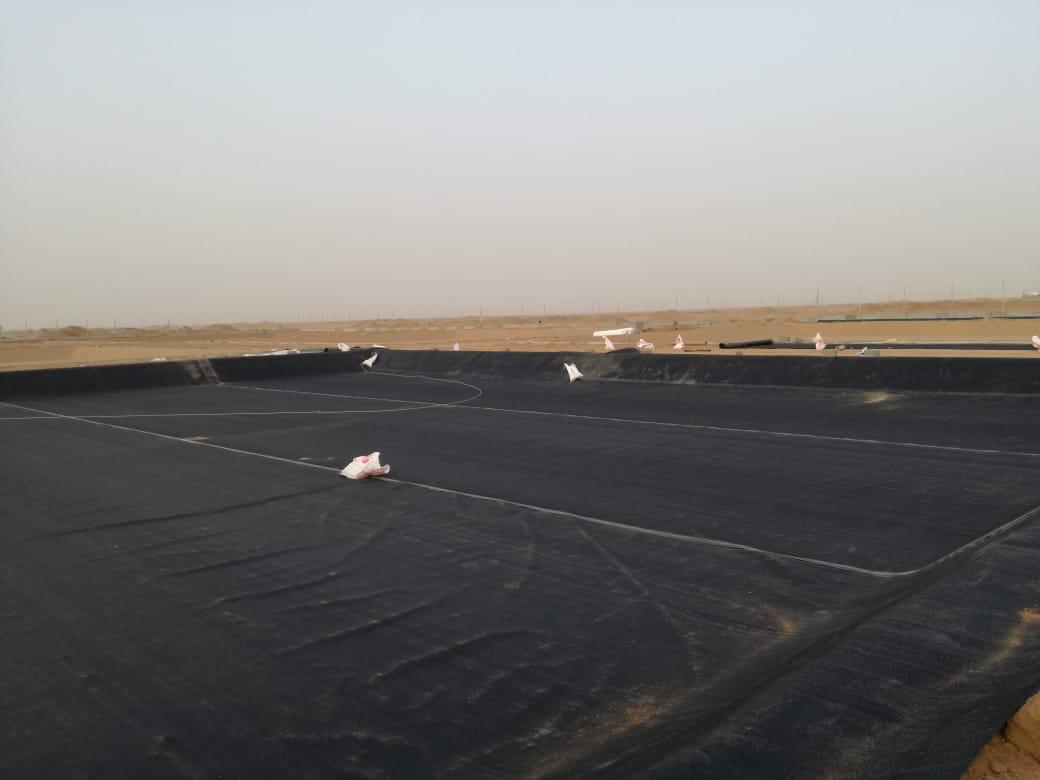

High-Density Polyethylene (HDPE) Black, Co-extruded Textured Geomembrane GPF Production line is Equipped with the latest European technology for manufacturing a geomembrane with a co-extruded textured surfaces using ultra high purity nitrogen. GPF HDPE Black, Co-Extruded Textured Geomembrane is a black high-quality product; manufactured in our state of the art Saudi Arabian facility. GPF uses 97.5% pure high density polyethylene virgin polymer, 2.5% carbon black, and trace amounts of antioxidants and UV stabilizer. It is used in different lining applications that require high quality and durable geomembrane with a high frictional resistance. It has embedded smooth edges inside the die head to offer more cost-effective, more consistent, and better welding. Chemical resistance, stress crack resistance, high mechanical properties, dimensional stability and UV stabilization are main features for GPF HDPE Co-extruded Textured geomembrane. All GPF HDPE Products are produced with specification that meets or exceeds GRI-GM13.
Product Specifications: Metric Units
| Test Property | Unit | Test Method | Minimum Average Value | |||
|---|---|---|---|---|---|---|
| Thickness (1)
Lowest individual (-10%) |
mm | ASTM D 5994 | 1.00 | 1.50 | 2.00 | 2.50 |
| mm | 0.90 | 1.35 | 1.80 | 2.25 | ||
| mils | 40 | 60 | 80 | 100 | ||
| Asperity Height | mm | ASTM D 7466 | ≥ 0.20 | ≥ 0.20 | ≥ 0.20 | ≥ 0.20 |
| Density | g/cm3 | ASTM D 792 | ≥ 0.94 | ≥ 0.94 | ≥ 0.94 | ≥ 0.94 |
| Strength at Yield
(Both Directions)
|
N/mm | ASTM D 6693
Type IV Dumbbell, 50mm/min
Gage length 33 mm for
Gage length 50mm for |
15 | 22 | 29 | 38 |
| Strength at Break
(Both Directions)
|
N/mm | 10 | 16 | 21 | 26 | |
| Elongation at Yield
(Both Directions) |
% | 12 | 12 | 12 | 12 | |
| Elongation at Break
(Both Directions) |
% | 100 | 100 | 100 | 100 | |
| Tear Resistance | N | ASTM D 1004 | 125 | 187 | 249 | 311 |
| Puncture Resistance | N | ASTM D 4833 | 320 | 480 | 620 | 800 |
| Carbon Black Content | % | ASTM D 1603 | 2.0 – 3.0 | |||
| Carbon Black Dispersion | Category | ASTM D 5596 | Note (2) | |||
| Dimensional Stability | % | ASTM D 1204
(120 oC / 1 h) |
± 2 | ± 2 | ± 2 | ± 2 |
| Melt Flow Index (3) | g/10 min | ASTM D 1238
(190 oC / 2.16 kg) |
≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 |
| Low Temperature Brittleness | oC | ASTM D 746 | -77 | -77 | -77 | -77 |
| Stress Crack Resistance (NCTL) | hr. | ASTM D 5397 | ≥ 500 | ≥ 500 | ≥ 500 | ≥ 500 |
| Oxidative Induction Time Standard (OIT) | min | ASTM D 3895 | 100 | 100 | 100 | 100 |
| Oven Aging at 85°C
HP OIT % retained after 90 days |
min | ASTM D 5721
ASTM D 5885 |
>80 | >80 | >80 | >80 |
| UV Resistance
HP OIT % retained after 1600 hrs |
min | GM 11
ASTM D 7238 |
>50 | >50 | >50 | >50 |
| Roll Width (approx.) (4) | m | ——- | 7/8 | 7/8 | 7/8 | 7 |
| Roll Length (approx.) | m | ——- | 175/150 | 115/100 | 85/75 | 70 |
Product Specifications: Imperial Units
| Test Property | Unit | Test Method | Minimum Average Value | |||
|---|---|---|---|---|---|---|
| Thickness (1)
Lowest individual (-10%) |
mils | ASTM D 5994 | 40 | 60 | 80 | 100 |
| mils | 36 | 54 | 72 | 90 | ||
| Asperity Height | mils | ASTM D 7466 | ≥ 10 | ≥ 10 | ≥ 10 | ≥ 10 |
| Density | g/ml | ASTM D 792 | ≥ 0.94 | ≥ 0.94 | ≥ 0.94 | ≥ 0.94 |
| Strength at Yield
(Both Directions)
|
lb/in | ASTM D 6693
Type IV Dumbbell, 2.0 in/min
Gage length 1.3 in for
Gage length 2.0 in for |
85 | 130 | 170 | 210 |
| Strength at Break
(Both Directions)
|
Ib/in | 60 | 90 | 120 | 150 | |
| Elongation at Yield
(Both Directions) |
% | 12 | 12 | 12 | 12 | |
| Elongation at Break
(Both Directions) |
% | 100 | 100 | 100 | 100 | |
| Tear Resistance | lb | ASTM D 1004 | 28 | 42 | 56 | 70 |
| Puncture Resistance | lb | ASTM D 4833 | 72 | 108 | 144 | 180 |
| Carbon Black Content | % | ASTM D 1603 | 2.0 – 3.0 | |||
| Carbon Black Dispersion | Category | ASTM D 5596 | Note (2) | |||
| Dimensional Stability | % | ASTM D 1204
(120 oC / 1 h) |
± 2 | ± 2 | ± 2 | ± 2 |
| Melt Flow Index (3) | g/10 min | ASTM D 1238
(190 oC / 2.16 kg) |
≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 |
| Low Temperature Brittleness | OF | ASTM D 746 | -106 | -107 | -106 | -106 |
| Stress Crack Resistance (NCTL) | hr. | ASTM D 5397 | ≥ 500 | ≥ 500 | ≥ 500 | ≥ 500 |
| Oxidative Induction Time Standard (OIT) | min | ASTM D 3895 | 100 | 100 | 100 | 100 |
| Oven Aging at 85°C
HP OIT % retained after 90 days |
min | ASTM D 5721
ASTM D 5885 |
>80 | >80 | >80 | >80 |
| UV Resistance
HP OIT % retained after 1600 hrs |
min | GM 11
ASTM D 7238 |
>50 | >50 | >50 | >50 |
| Roll Width (approx.) (4) | ft | ——- | 23 | 23 | 23 | 23 |
| Roll Length (approx.) | ft | ——- | 575 | 380 | 280 | 230 |
Notes:
- One (1) measurement taken every 1 meter along roll width – 10% lowest individual of 10 values.
- Carbon Black Dispersion (only near spherical agglomerates) for 10 different views: 9 in Categories 1 or 2 and 1 in Category 3.
- Standard test conditions: 190 oC / 2.16 kg.
- Roll Width and Length have a tolerance of ± 1%.
