Aquaculture Pond Liners: Advantages of HDPE Geomembranes for Fish and Shrimp Farms

In aquaculture, maintaining productive fish and shrimp farms starts with the right pond liner. High-Density Polyethylene (HDPE) geomembranes have become a dependable choice because they secure water, strengthen biosecurity, and lower lifetime costs. A well-chosen liner reduces seepage, stabilizes pond geometry, and streamlines harvests, while a poor one invites chronic water loss, disease, and repairs. This article explains what HDPE liners are, their benefits, and how to apply them in fish and shrimp farming so producers in both tropical and temperate climates can make resilient investments.

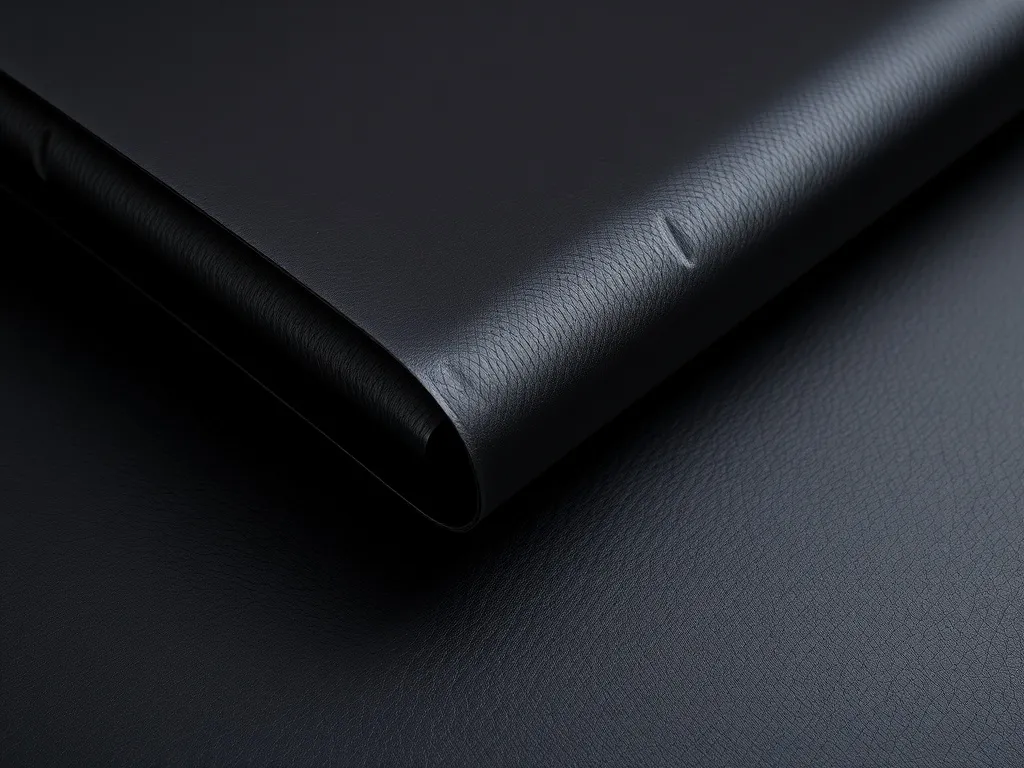

Understanding HDPE Geomembranes

HDPE geomembranes are flexible liners made from high-density polyethylene and used in aquaculture, mining, and environmental works. Built to standards such as GRI-GM13 and GRI-GM17, they deliver durability and environmental safety. High crystallinity gives strength and stress-crack resistance, while carbon black, antioxidants, and UV stabilizers protect against sunlight and aging. Common aquaculture thicknesses range from 0.5 mm to 2.0 mm, with smooth surfaces for cleaning or textured for slope friction. Reputable manufacturers document resin properties, tolerances, and performance so buyers can match products to site and regulatory needs.

The Importance of Pond Liners in Aquaculture

Pond liners create a barrier between water and soil, preventing leakage and enabling a controlled environment. This stabilizes water quality and temperature, improves feed efficiency, and lowers contamination risk. Seepage from earthen ponds can leach nutrients and treatments into subsoil while runoff or saline intrusion enters the system; a robust liner limits these exchanges, helping maintain salinity, alkalinity, and dissolved oxygen within species-specific ranges. Smooth, cleanable surfaces also speed turnaround and disinfection between cycles, reducing pathogen carryover and strengthening biosecurity.

The Evolution of Geomembrane Use in Aquaculture

The industry has steadily shifted from natural ponds to lined systems to raise yields and meet environmental rules. Early adopters aimed to curb seepage in permeable soils; today, liners anchor integrated designs with aeration, sludge management, and harvest basins. Many farms line canals, nurseries, and sumps first, then scale to fully lined grow-out ponds. This evolution supports precision aquaculture—consistent infrastructure, reliable data, predictable growth, and better financial planning.

Advantages of HDPE Geomembranes for Fish and Shrimp Farms

HDPE geomembranes enhance efficiency and sustainability by tightening water budgets, improving hygiene, and creating predictable hydraulics for uniform mixing and oxygen distribution. The result is steadier growth, higher survival, and better product quality, with added value where water is scarce or regulations are strict.

• Outstanding Chemical and UV Resistance: HDPE resists a wide range of chemicals and UV exposure, extending service life in sunlit ponds. It tolerates brackish water, routine disinfectants, and metabolites like ammonia and sulfides. Stabilizer packages help preserve mechanical properties for years, enabling robust cleaning regimes without rapid degradation.
• Superior Durability and Strength: High tensile, puncture, and tear resistance let HDPE endure temperature swings, water-level cycles, and aerator-induced waves. With proper anchoring it handles typical pond slopes, maintenance traffic, and placement of aeration lines, nets, and feeders with minimal wear.
• Environmental Protection and Sustainability: By minimizing seepage, HDPE protects surrounding soils and waters, supports recirculation and reuse, and reduces earthworks, pumping, and chemical needs—lowering the farm’s resource and carbon footprint. Many products are recyclable at end of life when managed properly.

Case Studies: HDPE Geomembrane Applications

Many aquaculture operations have adopted HDPE liners and experienced better water retention and production efficiency. For instance, a shrimp farm in Indonesia cut its water usage by 30% after installing high-quality HDPE liners, improving operating margins. Tilapia producers in East Africa report higher fingerling survival in HDPE-lined raceways, while Indian biofloc systems show steadier solids control and easier sludge removal—supporting clearer water and stable feed conversion. The common thread: controlled seepage and cleanable surfaces standardize routines, improve data quality, and free resources for health monitoring and feed optimization.

Implementing HDPE Geomembranes in Aquaculture

Realizing these benefits hinges on careful installation. Plan from soil reports and pond geometry, choose suitable thickness and texture, and schedule work around weather. Manage subgrade moisture, wind, welding access, and establish a QA/QC plan before mobilization.

1. Site Preparation: Grade and compact a uniform subgrade, remove sharp objects, and soften corners so the liner drapes without bridging. Where soils are rocky, add cushioning geotextile. Form anchor trenches or berms to secure edges and include underdrains if uplift is possible. Pre-mark penetrations for inlets, outlets, and aeration lines.
2. Liner Installation: Unroll panels carefully over the prepared base with typical overlaps of about 300 mm. Deploy during calm weather and allow relaxation before welding, especially in cool conditions. Use lifting bars to avoid creasing and scuffing. Prefabricated panels speed coverage but still require clean, dry seams and careful alignment.
3. Seaming and Inspection: Join seams by heat welding and confirm watertightness with trial welds each shift and non-destructive tests such as air-channel, vacuum box, or spark testing. Log seams, conditions, and results. Repair defects with prepared patches and extrusion welds, then retest. Ballast or partially fill to seat the liner and seal penetrations with factory boots or field-fabricated collars and flanges.

Maintaining HDPE Pond Liners

Routine care extends service life. Inspect high-traffic areas, anchor trenches, and aerator mounts; clean biofilm with soft brushes or low-pressure washes; avoid harsh solvents and sharp tools. Manage equipment and lines to prevent abrasion points. Use bird nets, control vermin, and trim vegetation. Keep patch stock and access to certified welders so small defects are repaired quickly between cycles.

Challenges and Solutions in HDPE Liner Use

Despite their benefits, HDPE liners can present challenges such as budget constraints, technical complexity, and site-specific risks. With planning and capable partners, these hurdles are manageable and farms can realize performance gains without disrupting schedules or safety.

• Initial Cost: The upfront investment can be significant, but long-term savings from conserved water, reduced downtime, and easier harvests usually outweigh it. Use total cost of ownership analyses, phase priority ponds, seek supplier financing, or group-purchase to ease cash flow.
• Complex Installation: Skilled crews matter. Prequalify contractors for certifications, references, and weld testing procedures. Plan around stable weather, stage materials, and use daily coordination and QA/QC checklists to maintain pace and meet stocking dates.
• Potential Damage: Protect against puncture with geotextiles, rounded corners, and temporary walkways. Train staff on footwear and tools, control rodents and roots near embankments, and inspect anchors after storms or high water.

Comparative Analysis: HDPE vs. Alternative Liners

Conclusion: The Future of HDPE in Aquaculture

HDPE geomembranes will keep shaping aquaculture by delivering dependable, cost-effective, and sustainable ponds. As conservation priorities grow, adoption will expand. Pairing liners with smart aeration, sensors, and sludge systems will unlock further value by enabling precise, repeatable management. As standards and training mature, more producers will implement best practices at lower cost.

In conclusion, HDPE geomembranes are an essential part of modern aquaculture. Their durability, environmental protection, and cost efficiency lift performance in fish and shrimp farming. For new builds or retrofits, assess soils, water security, and targets, then partner with reputable suppliers offering verifiable specifications, warranties, and support. With thoughtful design and disciplined maintenance, HDPE-lined systems deliver higher yields, stronger biosecurity, and a lighter environmental footprint.
