Product Description

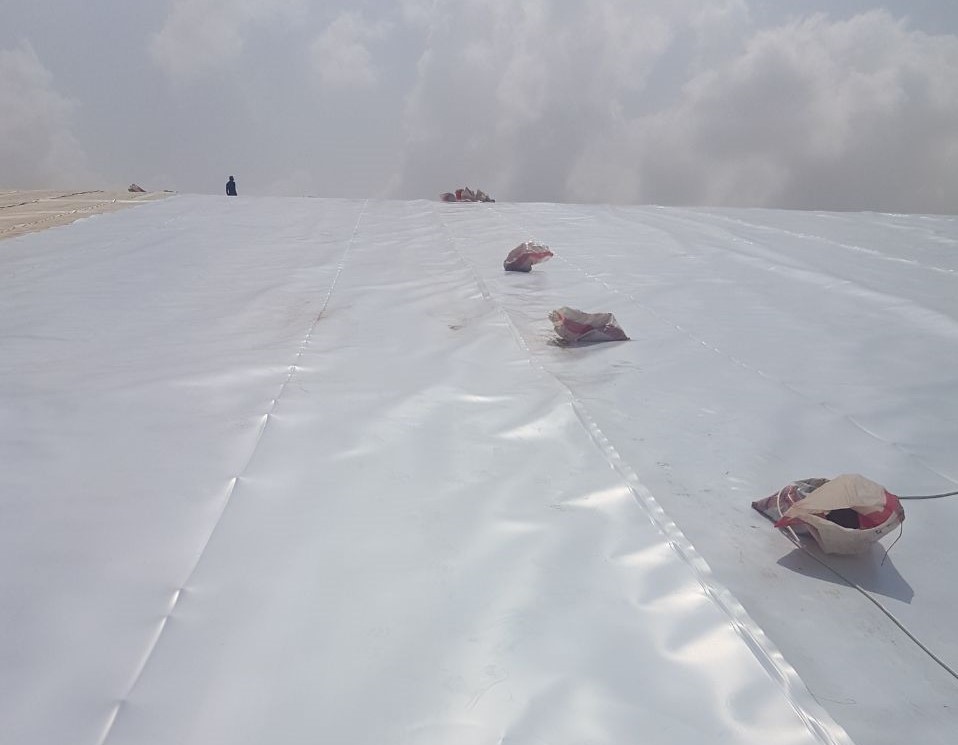

GPF HDPE Smooth, Conductive Geomembrane is a high quality, conductive product; that is manufactured in our state-of-the-art Saudi Arabian facility. It is manufactured using integrated, specially formulated high electrically conductive carbon black compound in the bottom layer with pure polyethylene virgin polymer, and trace amounts of antioxidants and UV stabilizer to form a good conductive bottom surface of geomembrane to perform in field leak location detection using spark test according to ASTM D7240. No other additives, filters or extenders are used. This Product is used in applications that required post installation testing on the geomembrane liner system to ensure the high quality and durable of the project. Excellent Chemical resistance, Stress crack resistance, High mechanical properties, Dimensional stability and UV stabilization are main features for GPF HDPE Smooth, Conductive Geomembrane. A colored surface on one side and bottom black conductive surface are produced as per the customer’s needs. All GPF HDPE Products are produced with specification that meets or exceeds GRI-GM13.
Product Specifications: Metric Units
| Test Property | Unit | Test Method | Minimum Average Value | |||
|---|---|---|---|---|---|---|
| Thickness (1)
Lowest individual (-10%) |
mm | ASTM D 5199 | 1.0 | 1.5 | 2.0 | 2.5 |
| mm | 0.90 | 1.35 | 1.80 | 2.25 | ||
| Density | g/cm3 | ASTM D 792 | ≥ 0.94 | ≥ 0.94 | ≥ 0.94 | ≥ 0.94 |
| Strength at Yield
(Both Directions) |
N/mm | ASTM D 6693
Type IV Dumbbell, 50mm/min
Gage length 33 mm for
Gage length 50mm for Break Elongation |
15 | 22 | 29 | 38 |
| Strength at Break
(Both Directions) |
N/mm | 30 | 45 | 58 | 75 | |
| Elongation at Yield
(Both Directions) |
% | 13 | 13 | 13 | 13 | |
| Elongation at Break
(Both Directions) |
% | 700 | 700 | 700 | 700 | |
| Tear Resistance | N | ASTM D 1004 | 125 | 190 | 249 | 311 |
| Puncture Resistance | N | ASTM D 4833 | 360 | 520 | 680 | 840 |
| Carbon Black Content | % | ASTM D 1603 | 2 – 3 % (2) | |||
| Carbon Black Dispersion | Category | ASTM D 5596 | Note (3) | |||
| Dimensional Stability (Max change) | % | ASTM D 1204
(120 oC / 1 h) |
± 2 | ± 2 | ± 2 | ± 2 |
| Melt Flow Index (4) | g/10 min | ASTM D 1238
(190 oC / 2.16 kg) |
≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 |
| Surface Resistivity on 100 μm film | Ohm/sqm | CTM E042B | 5×103 | 5×103 | 5×103 | 5×103 |
| Stress Crack Resistance (NCTL) | hr. | ASTM D 5397 | ≥ 500 | ≥ 500 | ≥ 500 | ≥ 500 |
| Oxidative Induction Time Standard (OIT) | min | ASTM D 3895 | ˃100 | ˃100 | ˃100 | ˃ 100 |
| Oven Aging at 85oC
HP OIT % retained after 90 days |
min | ASTM D 5721
ASTM D 5885 |
˃80 | ˃80 | ˃80 | ˃80 |
| UV Resistance
HP OIT % retained after 1600 hrs |
min | GM11
ASTM D 7238 |
˃50 | ˃50 | ˃50 | ˃50 |
| Roll Width (approx.) (5) | m | ——- | 8 | 8 | 8 | 8 |
| Roll Length (approx.) | m | ——- | 170 | 110 | 85 | 65 |
Product Specifications: Imperial Units
| Test Property | Unit | Test Method | Minimum Average Value | |||
|---|---|---|---|---|---|---|
| Thickness (1)
Lowest individual (-10%) |
mils | ASTM D 5199 | 40 | 60 | 80 | 100 |
| mils | 36 | 54 | 72 | 90 | ||
| Density | g/ml | ASTM D 792 | ≥ 0.94 | ≥ 0.94 | ≥ 0.94 | ≥ 0.94 |
| Strength at Yield
(Both Directions) |
lb/in | ASTM D 6693
Type IV Dumbbell, 50mm/min
Gage length 33 mm for
Gage length 50mm for Break Elongation |
84 | 126 | 168 | 210 |
| Strength at Break
(Both Directions) |
lb/in | 152 | 228 | 304 | 380 | |
| Elongation at Yield
(Both Directions) |
% | 13 | 13 | 13 | 13 | |
| Elongation at Break
(Both Directions) |
% | 700 | 700 | 700 | 700 | |
| Tear Resistance | lb | ASTM D 1004 | 28 | 42 | 56 | 70 |
| Puncture Resistance | lb | ASTM D 4833 | 72 | 108 | 144 | 180 |
| Carbon Black Content | % | ASTM D 1603 | 2 – 3 % (2) | |||
| Carbon Black Dispersion | Category | ASTM D 5596 | Note (3) | |||
| Dimensional Stability (Max change) | % | ASTM D 1204
(120 oC / 1 h) |
± 2 | ± 2 | ± 2 | ± 2 |
| Melt Flow Index (4) | g/10 min | ASTM D 1238
(190 oC / 2.16 kg) |
≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 |
| Surface Resistivity on 100 μm film | Ohm/sqm | CTM E042B | 5×103 | 5×103 | 5×103 | 5×103 |
| Stress Crack Resistance (NCTL) | hr. | ASTM D 5397 | ≥ 500 | ≥ 500 | ≥ 500 | ≥ 500 |
| Oxidative Induction Time Standard (OIT) | min | ASTM D 3895 | ˃100 | ˃100 | ˃100 | ˃ 100 |
| Oven Aging at 85oC
HP OIT % retained after 90 days |
min | ASTM D 5721
ASTM D 5885 |
˃80 | ˃80 | ˃80 | ˃80 |
| UV Resistance
HP OIT % retained after 1600 hrs |
min | GM11
ASTM D 7238 |
˃50 | ˃50 | ˃50 | ˃50 |
| Roll Width (approx.) (5) | ft | ——- | 23 | 23 | 23 | 23 |
| Roll Length (approx.) | ft | ——- | 690 | 460 | 345 | 280 |
Notes:
- One (1) measurement taken every 1 meter along roll width – 10% lowest individual of 10 values.
- Carbon Black Dispersion (only near spherical agglomerates) for 10 different views: 9 in Categories 1 or 2 and 1 in Category 3.
- Standard test conditions: 190 oC / 2.16 kg.
- Roll Width and Length have a tolerance of ± 1%.
